Mechanical Properties of Common Engineering Materials

By | December 5, 2021

What are mechanical properties of engineering materials?

Mechanical properties are physical properties that a material exhibits upon the application of forces. In this article we will understand (in brief) mechanical properties of common engineering materials.

  • Creep

When a body is subjected to a constant load over a long period of time, it undergoes a slow permanent deformation. This permanent deformation is known as creep.

  • Toughness

Toughness is the mechanical property which enables to be twisted, bent or stretched under impact load or high stress before rupture.

  • Resilience

Resilience is the property of material that enables it to resist shock and impact by storing energy.

  • Ductility

Ductility is the property of the material that enables it to be drawn out or elongated to an appreciable extent before rupture occurs.

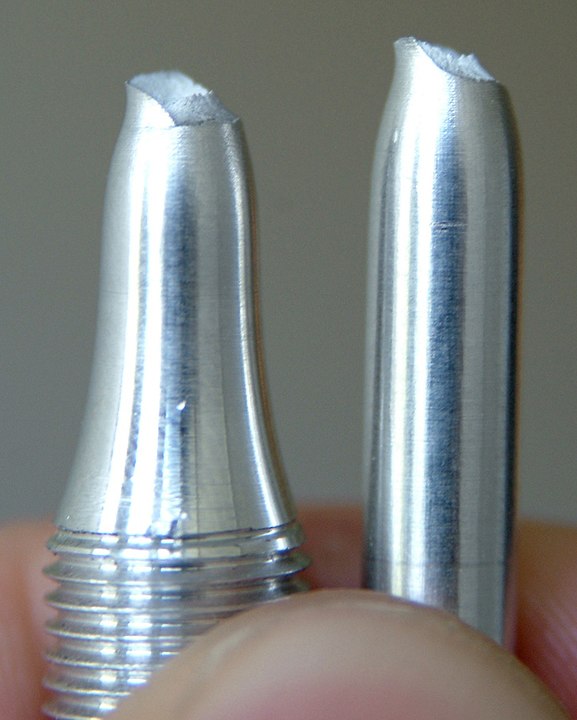

ductile fracture by tensile test

Ductile fracture by tensile test

  • Malleability

Malleability is a special case of ductility where the material can be rolled into thin sheets but it is not necessary to be strong.

  • Brittleness

Brittleness is opposite to ductility. Brittle materials show little or no deformation before failure and fracture occurs suddenly without warning.

  • Hardness

Hardness is a property of the material which enables it to resist permanent deformation, penetration, indentation etc.

  • Plasticity

Plasticity is associated with the permanent deformation of material when the stress level exceeds yield point. Under plastic conditions material ideally deforms without any increase in stress.

  • Elasticity

Elasticity is the property of a material to regain its original shape after deformation when the external forces are removed.

  • Strength

Ability of a material to withstand a particular load is known as strength. It has four types yield strength, compressive strength, tensile strength and compressive strength.

  • Elastic strain

It is the change in dimension of a material due to application of an external load. This changes nullifies on the removal of that particular load.

Featured Image attribution: By Sigmund – Own work, CC BY-SA 3.0, https://commons.wikimedia.org/w/index.php?curid=4081355
